Smart Fresh Air Ventilation Controller Wall Mounted With CO2 PM2.5 VOC Monitoring

  • 1
  • 2
  • 3

Model Number : G5

Payment Terms : T/T

Rated voltage : AC 220 V, 50 Hz

Operating humidity range : 5% RH - 90% RH (no condensation)

Supply Ability : 100000pcs

Standby power consumption : ≤2.0 W

Certification : CE, RoHS

External dimensions : 89×89×50 mm

Price : US$79

Operating temperature range : -10°C to +50°C

Place of Origin : China

Brand Name : OEM or neutral (no brand)

MOQ : 1

Delivery Time : 2-3 weeks

Control power : ≤200 W

Contact Now

Product Overview:

The G5 LCD digital smart fresh air controller offers both manual and timer operation modes, with its output signals directly controlling the unit's startup and speed. Widely applicable in residential, commercial, and industrial settings, it effectively enhances air quality to create a healthy, comfortable, efficient, eco-friendly, and energy-saving living and working environment.

Key Features:
  • Smart Fresh Air System Controller
  • Touch Buttons HRV ERV Controller
  • Constant Air Volume Ventilation Control Panel
  • Adjustable Fan Speed Vent Controller
  • Real-Time PM2.5 CO2 Humidity Display
  • Low Noise Fan Speed Regulation
  • Timer & Auto Mode Ventilation Control
  • Wall Mounted Fresh Air Control Panel
Specifications:
External dimensions: 89*89*50 mm
Temperature display range: 0°C – 50°C
Installation spacing: 60 mm (standard)
Operating temperature range: -10°C to +50°C
Rated voltage: AC 220 V, 50 Hz
Storage temperature: -10°C to +60°C
Standby power consumption: ≤2.0 W
Storage humidity: ≤60% RH
Control power: ≤200 W
Service life: ≥ 5 years
Output Interface: Three-speed Fan
Wiring terminals: Suitable for conductors with a maximum cross-section of 2.5 mm²
Operating humidity range: 5% RH – 90% RH (no condensation)

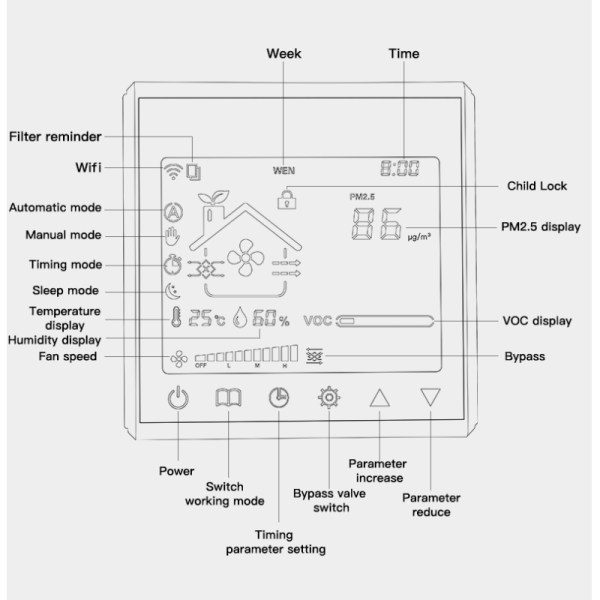

Product Images:
Smart Fresh Air Ventilation Controller Wall Mounted With CO2 PM2.5 VOC Monitoring
Smart Fresh Air Ventilation Controller Wall Mounted With CO2 PM2.5 VOC Monitoring
Smart Fresh Air Ventilation Controller Wall Mounted With CO2 PM2.5 VOC Monitoring
Smart Fresh Air Ventilation Controller Wall Mounted With CO2 PM2.5 VOC Monitoring
Smart Fresh Air Ventilation Controller Wall Mounted With CO2 PM2.5 VOC Monitoring
Wiring Diagram:
Smart Fresh Air Ventilation Controller Wall Mounted With CO2 PM2.5 VOC Monitoring
Smart Fresh Air Ventilation Controller Wall Mounted With CO2 PM2.5 VOC Monitoring
Smart Fresh Air Ventilation Controller Wall Mounted With CO2 PM2.5 VOC Monitoring
