7 Inch LCD Color Touchscreen Smart HVAC Controller With Fresh Air Ventilation System

Product Categories
Shenzhen Xiangfan Electronics Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

7 Inch LCD Color Touchscreen Smart HVAC Controller With Fresh Air Ventilation System

  • 1
  • 2

After-sale Service : Online Technical Support

Model Number : G7 Pro

Brand Name : OEM or neutral

Certification : CE and RoHS

MOQ : 1 Piece

Price : $103

Optional built in sensors : VOC+PM2.5+CO2+Temperature+Humidity

Payment Terms : T/T

Place of Origin : Guangdong, China

Delivery Time : 2-3 weeks

Design Style : Contemporary, Modern, Minimalist, Industrial, European, Tropical

MOQ : 1

Supply Ability : 100000pcs

Application : Villa, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Workshop, Park, Farmhouse, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Storage and Closet, Wine Cell

Feature : Flexible, Energy Saving, Easy Install

Contact Now

Product Overview:

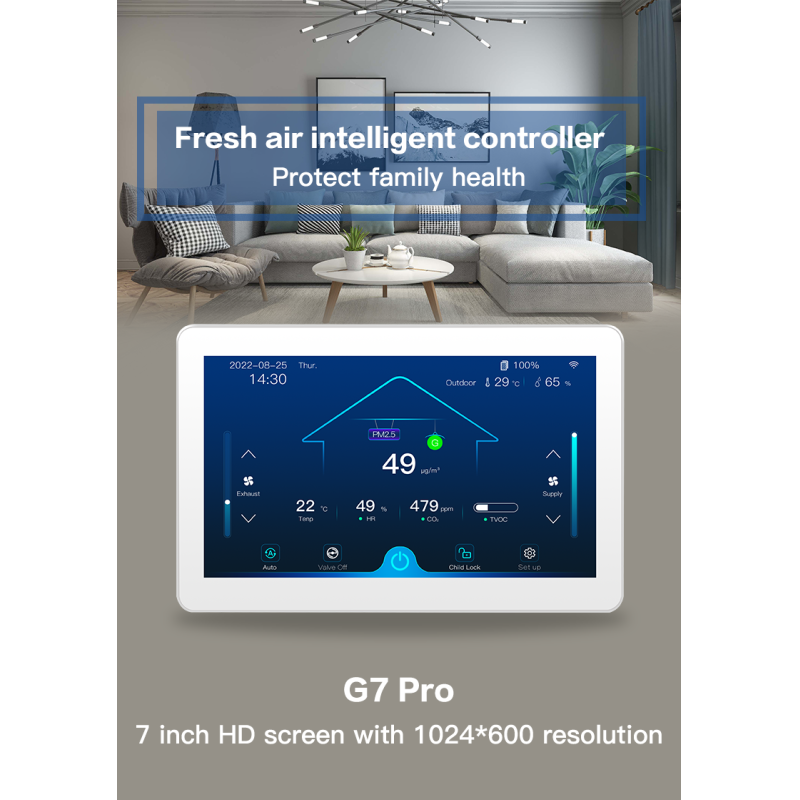

G7 Pro is an intelligent fresh air ventilation controller that integrates multiple sensors such as PM2.5, CO2, temperature, humidity, etc. The device adopts a 7-inch HD color screen and a high-sensitivity touch screen design. The device is equipped with WIFI, which can be remotely accessed and controlled through the Internet. At the same time, RS485 port and MODBUS protocol are reserved for communication with smart home, building intelligent control, etc.
The AC version of the controller can output relay signals to directly control the start, stop and speed regulation of the AC fan, and the DC version can output two separate control voltages to control the start, stop and speed regulation of the DC fan. It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality and create a healthy, comfortable, efficient, environmentally friendly and energy-saving living and working environment.

Basic Functions Overview:

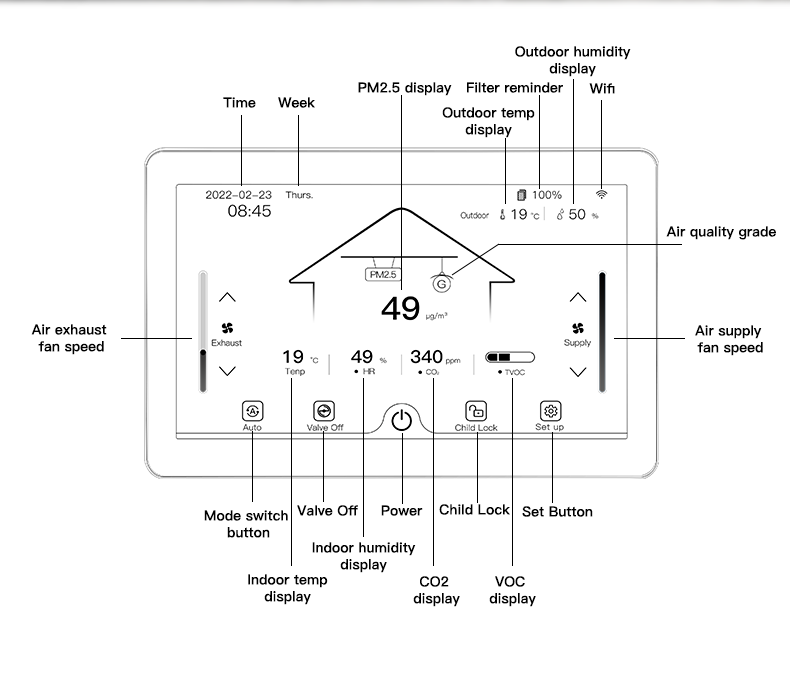

  • 7-inch LCD color touchscreen display for intuitive operation
  • Suitable for AC, EC, and DC fans, HRV/ERV and other fresh air ventilation systems
  • Automatic fan speed control based on real-time CO₂, PM2.5, and VOC levels
  • Standard 86-type wall-mounted design
  • Wi-Fi remote control via Smart Life App and Tuya App, with RS485 communication support for building automation and system integration.
  • OEM & ODM customization available, including UI interface design, logo branding, and housing color customization to meet specific project requirements
Product Specifications:
* Dimension:
115 × 185 mm
* Display interface:
7 inch, 1024 x 600
* Warm-up time:
2 minutes
* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire
* Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz
* Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 3.0W
* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W
* Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC
* PM2.5 display range:
0ug/m3——999ug/m3
* Temperature display range:
0℃ —— 99℃
* CO2 display range:
0ppm-9999ppm
* Humidity display range:
0% —— 99%
* Fixing hole distance:
60mm(standard)
Product Photos:
7 Inch LCD Color Touchscreen Smart HVAC Controller With Fresh Air Ventilation System 7 Inch LCD Color Touchscreen Smart HVAC Controller With Fresh Air Ventilation System7 Inch LCD Color Touchscreen Smart HVAC Controller With Fresh Air Ventilation System
