IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management

Name: IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
Brand: OEM or neutral (no brand)
Price: 95 USD

Buy cheap IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management product

Fan Speed Levels : Low/ Medium/ High

Model Number : G5-S

Connectivity : Wi-Fi, RS485

MOQ : 1

Delivery Time : 2-3 weeks

Payment Terms : T/T

Mobile App : Smart Life App / Tuya Smart App

Price : US$95

Supply Ability : 100000pcs

Suitable for fans : AC/EC/DC

Certification : CE, RoHS

Product Name : Smart Fresh Air HVAC system Controller

Brand Name : OEM or neutral (no brand)

Power Supply : AC220V

Place of Origin : Guangdong, China

Contact Now

Product Overview:

G5-S intelligent HVAC system controller uses touch button technology, easy to operate. Built-in sensors can monitor real-time indoor PM2.5 concentration and CO₂ concentration (optional). Controller output signal can directly control the startup and speeds of the air purification equipment.

With Wi-Fi connectivity, the device enables remote control and monitoring through smart apps, while the intuitive touch interface and physical buttons provide flexible local operation. Additional features such as child lock, timing function, and multi-directional navigation keys enhance usability and safety for residential and commercial applications.

Compact and modern in design, this controller is suitable for residential buildings, offices, hotels, schools, and smart building projects, offering a reliable and intelligent solution for fresh air ventilation management.

Applications:

Residential Homes • Apartments • Offices • Schools • Hotels • Hospitals • Commercial Buildings • Smart Building Projects • HVAC Ventilation Systems

* Dimension:	86 × 86 × 40 mm	* Warm-up time:	2 minutes
* Fixing hole distance:	60mm (standard)	* Response time:	≤ 10 seconds
* Wiring terminal:	Max 2.5 mm2 wire	* Recovery time:	≤ 30 seconds
* Rated voltage:	AC110-240V, 50/60Hz	* Operating temperature:	-10℃--- +50℃
* Standby Power:	≤ 2.0W	* Operating humidity:	5％RH——90％RH
* Control power:	≤ 200W	* Storage temperature:	-10℃--- +60℃
* Suitable for fans:	AC/EC/DC	* Storage humidity:	≤ 60％RH
* Temperature display range:	0℃ —— 99℃	* Life:	≥ 5 years
* PM2.5 display range:	1ug/m3——999ug/M3

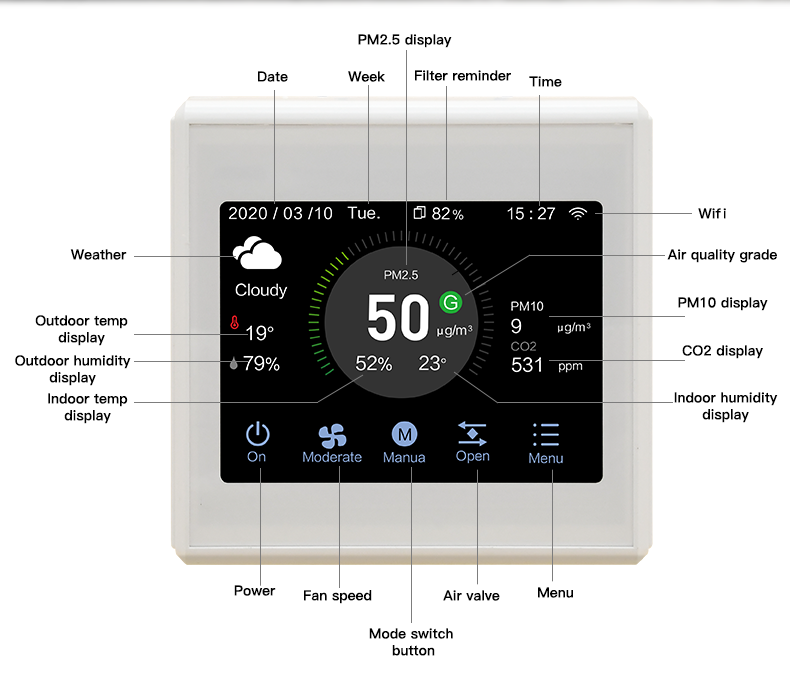

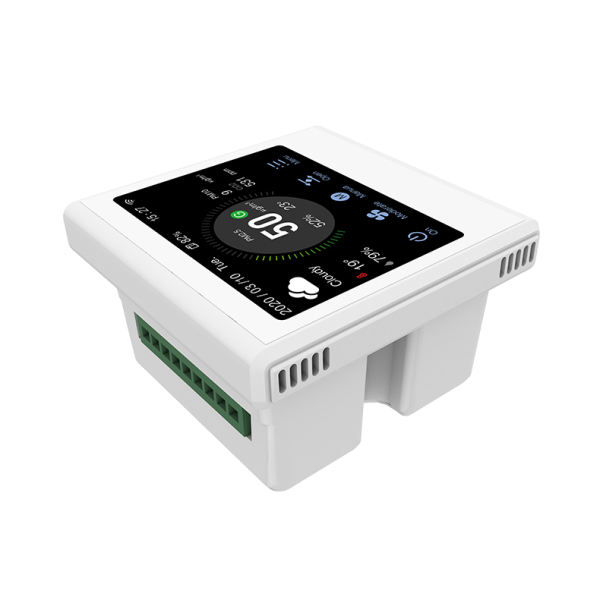

Product Images:

IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management

<img src="/photo/smarthvaccontroller/editor/20260602192631_26956.png" class="magic-22" data-mce-src="/photo/smarthvaccontroller/editor/20260602192631_26956.png"> IoT Smart Air Quality Controller with WiFi Remote Fresh Air System Management
