Smart Fresh Air Ventilation System AC EC DC Fan Motors Controller

  • 1
  • 2

Model Number : KF-900A-S

MOQ : 1

Delivery Time : 2-3 weeks

Payment Terms : T/T

Standby Power : ≤ 3.0W

OEM/ODM Service : Available

Price : US$96

Control power : ≤ 200W

Supply Ability : 100000pcs

Rated voltage : AC110-240V, 50/60Hz

Certification : CE, RoHS

Brand Name : OEM or neutral (no brand)

Dimension : 88 × 88 × 50 mm

Shell color : Black

Place of Origin : China

Contact Now

Product Overview:

KF900A-S fresh air system intelligent controller can monitor indoor temperature and humidity, PM2.5, CO2 (optional), VOC (optional) and other data in real time; WIFI can be connected (optional);

With ModBus RTU (RS485) interface, users can connect to smart home and other background monitoring equipment status through ModBus interface; 0-10V voltage signal controls the start and speed of the fan.

The controller supports Wi-Fi connectivity and can be remotely monitored and controlled through the Smart Life App or Tuya Smart App, allowing users to manage their ventilation system anytime and anywhere. In addition, the built-in RS485 communication interface enables seamless integration with HVAC systems, building management systems (BMS), and smart building platforms.

Key Features:
  • WiFi Smart Control
  • App Remote Control
  • Touchscreen Display
  • Programmable Weekly Schedule
  • Smart Home Integration
  • IoT Enabled Controller
  • Cloud Monitoring Support
Specifications:
* Dimension: 88 × 88 × 50 mm
* Warm-up time: 1 minute
* Fixing hole distance: 60mm (standard)
* Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire
* Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz
* Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 3.0W
* Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W
* Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC
* PM2.5 display range: 0ug/m3——999ug/M3
* Temperature display range: 0℃ —— 99℃
* C02 display range: 0ppm——9999ppm
* Humidity display range: 0%—99%

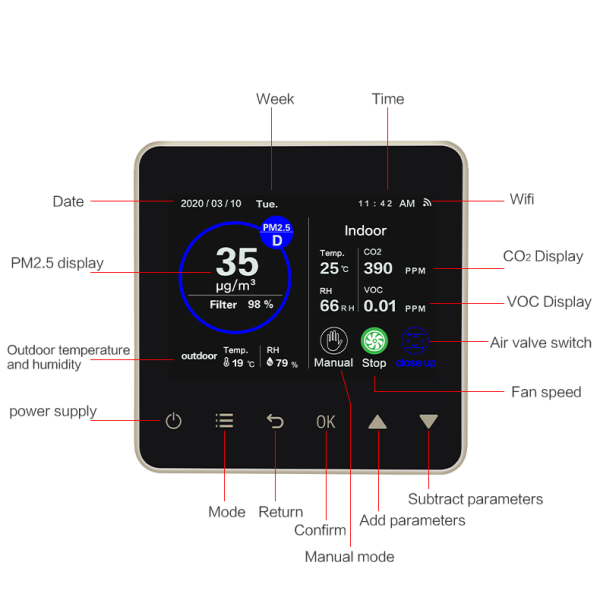

Product Images:

Smart Fresh Air Ventilation System AC EC DC Fan Motors Controller

Smart Fresh Air Ventilation System AC EC DC Fan Motors Controller

Smart Fresh Air Ventilation System AC EC DC Fan Motors Controller
Smart Fresh Air Ventilation System AC EC DC Fan Motors Controller
Wiring Diagrams:
Smart Fresh Air Ventilation System AC EC DC Fan Motors Controller
