4 Inch LCD Color Touch Screen Smart Fresh Air System Controller with Multi Speed Fan Control VOC+PM2.5+CO2+Temperature+Humidity Sensors

  • 1
  • 2

Supply Ability : 100000pcs

Place of Origin : China

Delivery Time : 2-3 weeks

Certification : CE, RoHS

Model Number : G9

MOQ : 1

Built-in Sensors : VOC+PM2.5+CO2+Temperature+Humidity

Wiring Terminal : Max 2.5 mm2 wire

Voltage : AC 100-240V

Communication Protocol : Modbus RTU

Brand Name : OEM or neutral (no brand)

Fan Motors : AC/EC/DC fans

Price : $100

Payment Terms : T/T

Fan Control : Multi-Speed Fan Control

Contact Now

4 Inch LCD Color Touch Screen HVAC Fresh Air Ventilation Smart Wifi Controller
Product Overview:

The Smart Fresh Air Ventilation Controller G9 is a powerful and user-friendly solution designed for modern fresh air, HRV, and ERV ventilation systems. Featuring a 4-inch full-color touchscreen display, it provides real-time monitoring of indoor air quality and intelligent ventilation management for residential and commercial applications.

WIFI can be connected (optional); With ModBus RTU (RS485) interface, users can connect to smart home and other background monitoring equipment status through ModBus interface; 0-10V voltage signal controls the start and speed of the fan.

It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality to create a healthy, comfortable, efficient, environment-friendly and energy-saving living and working environment.

Key Features:
  • 4-inch LCD color touchscreen display for intuitive operation
  • Automatic fan speed control based on real-time CO₂, PM2.5, and VOC levels
  • High Precision Air Sensor Vent Panel
  • Indoor Air Quality IAQ Smart Controller
  • Dust Detection Fresh Air Controller
Technical Specifications:
* Dimension: 86 × 86 × 40 mm * Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard) * Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz * Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W * Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W * Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC * Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃ * Life: ≥ 3 years
* CO2 display range: 350ppm——2000ppm * PM2.5 display range: 1ug/m3——999ug/m3
Product Images:

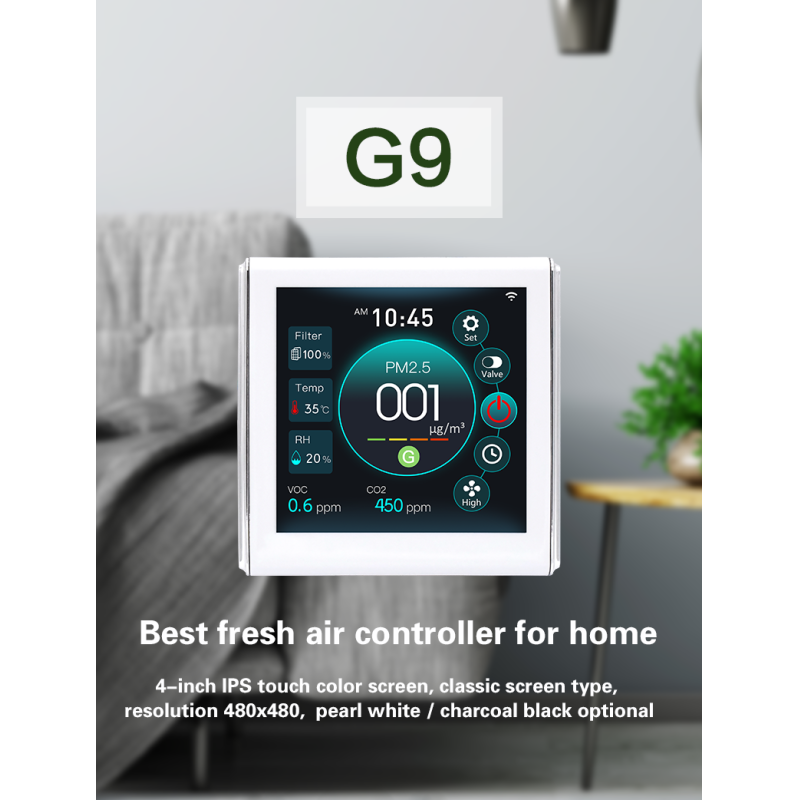

4 Inch LCD Color Touch Screen Smart Fresh Air System Controller with Multi Speed Fan Control VOC+PM2.5+CO2+Temperature+Humidity Sensors


4 Inch LCD Color Touch Screen Smart Fresh Air System Controller with Multi Speed Fan Control VOC+PM2.5+CO2+Temperature+Humidity Sensors

4 Inch LCD Color Touch Screen Smart Fresh Air System Controller with Multi Speed Fan Control VOC+PM2.5+CO2+Temperature+Humidity Sensors
