Smart Ventilation Controller with 4 Inch LCD Color Touchscreen for Multi Sensor Monitoring Wifi Control via Tuya & Smart Life APPs

  • 1
  • 2

Price : $100

Certification : CE, RoHS

Supply Ability : 100000pcs

Control interface : ModBus RTU (RS485)

Signal output : EC 0-10V or AC 3 speeds

Voltage : AC 100-240V

Fan speed control : High, medium, low

Built in sensors : VOC+PM2.5+CO2+Temperature+Humidity

MOQ : 1

Payment Terms : T/T

Display type : 4-inch LCD color touchscreen

Brand Name : OEM or neutral (no brand)

Model Number : G9

Place of Origin : China

Delivery Time : 2-3 weeks

Contact Now

G9 -- CO2 PM2.5 VOC Humidity Temperature Monitor Indoor Air Quality IAQ Smart Ventilation Controller

Product Overview:

G9 fresh air system intelligent controller can monitor indoor temperature and humidity, PM2.5, CO2 (optional), VOC (optional), simulated formaldehyde (optional) and other data in real time;

WIFI can be connected (optional); With ModBus RTU (RS485) interface, users can connect to smart home and other background monitoring equipment status through ModBus interface; 0-10V voltage signal controls the start and speed of the fan.

It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality to create a healthy, comfortable, efficient, environment-friendly and energy-saving living and working environment.

Key Features:

  • 4-inch LCD color touchscreen display for intuitive operation
  • 3 levels fan speed control
  • Automatic fan speed control based on real-time CO₂, PM2.5, and VOC levels
  • Smart air quality management for fresh air systems
  • Multi-speed ventilation adjustment for optimal indoor air quality
  • Data-driven intelligent control for energy-efficient operation
  • Suitable for HRV/ERV and other fresh air ventilation systems
* Dimension:
86 × 86 × 40 mm

* Warm-up time:
2 minutes
* Fixing hole distance:
60mm (standard)

* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire

* Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz

* Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 2.0W

* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W

* Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC

* Storage humidity:
≤ 60％RH
* Temperature display range:
0℃ —— 99℃

* Life:
≥ 3 years
* CO2 display range:
350ppm——2000ppm

* PM2.5 display range:
1ug/m3——999ug/m3

Product Images:

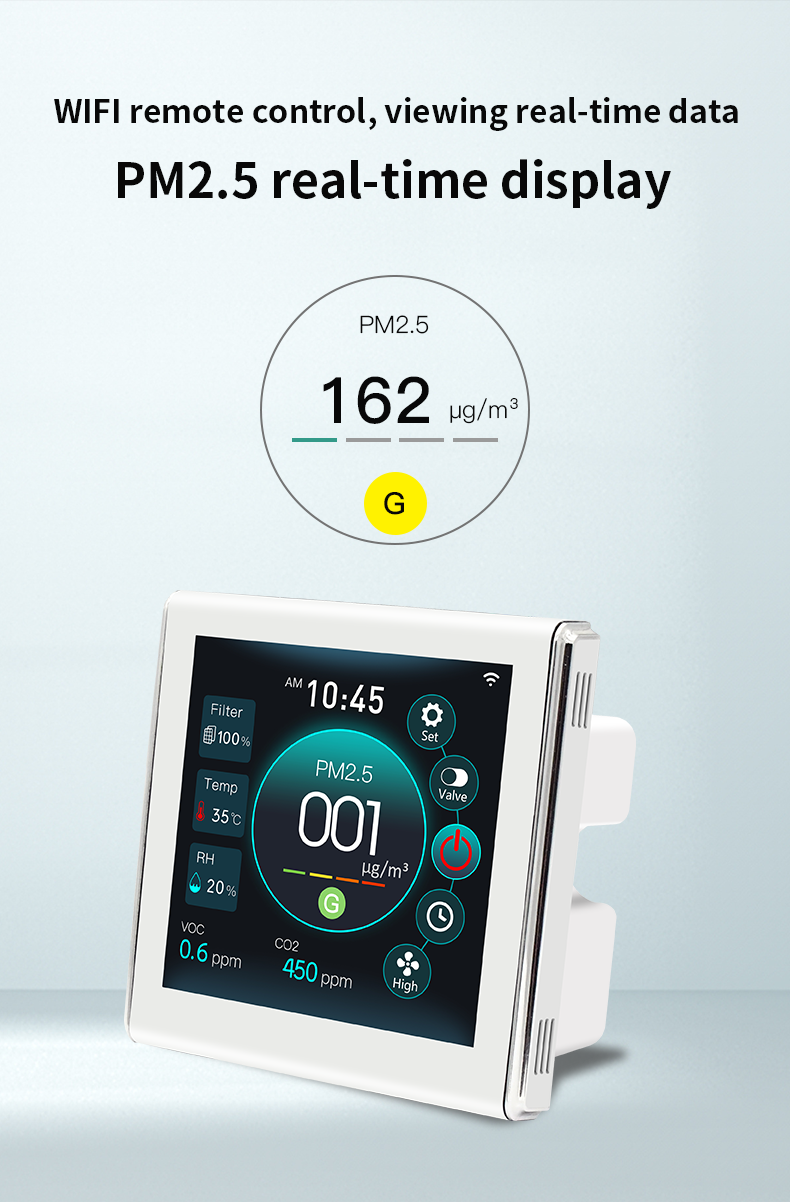

Smart Ventilation Controller with 4 Inch LCD Color Touchscreen for Multi Sensor Monitoring Wifi Control via Tuya & Smart Life APPs

Smart Ventilation Controller with 4 Inch LCD Color Touchscreen for Multi Sensor Monitoring Wifi Control via Tuya & Smart Life APPs

Smart Ventilation Controller with 4 Inch LCD Color Touchscreen for Multi Sensor Monitoring Wifi Control via Tuya & Smart Life APPs
