4 Inch Smart Ventilation Controller with WiFi Connectivity ModBus RTU Interface for Real Time Fresh Air System Management

  • 1
  • 2

Model Number : G6-T

Operating temperature : -10℃--- +50℃

MOQ : 1

Delivery Time : 2-3 weeks

Control power : ≤ 200W

Payment Terms : T/T

Price : $65

Connectivity : Wi-Fi, RS485

Supply Ability : 100000pcs

Certification : CE, RoHS

CO2 display range : 350ppm----2000ppm

Brand Name : OEM or neutral (no brand)

Rated voltage : AC110-240V, 50/60Hz

Place of Origin : Guangdong, China

Standby Power : ≤ 2.0W

Contact Now

Product overview:

The G6-T fresh air system intelligent controller can monitor indoor temperature, humidity, PM2.5, CO2, and VOC levels in real time; it supports Wi-Fi connectivity; and features a ModBus RTU (RS485) interface, allowing users to connect to smart home and other backend monitoring systems.

The controller controls the fresh air unit's operation and fan speed, and can be widely used in residential, commercial, and industrial settings.

It effectively improves air quality, creating a healthy, comfortable, efficient, environmentally friendly, and energy-saving living and working environment.

Key Features:
  • Universal Ventilation Controller
  • Compatible with HRV/ERV Systems
  • Easy Installation
  • OEM/ODM Available
  • Commercial & Residential Applications
Technical Specifications:
* Dimension: 86 * 86 * 40 mm * Warm-up time: 2 minutes
* Fixing hole distance: 60mm (standard) * Response time: ≤ 10 seconds
* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤ 30 seconds
* Rated voltage: AC110-240V, 50/60Hz * Operating temperature: -10℃--- +50℃
* Standby Power: ≤ 2.0W * Operating humidity: 5％RH——90％RH
* Control power: ≤ 200W * Storage temperature: -10℃--- +60℃
* Suitable for fans: AC/EC/DC * Storage humidity: ≤ 60％RH
* Temperature display range: 0℃ —— 99℃ * Life: ≥ 3 years
* CO2 display range: 350ppm——2000ppm * PM2.5 display range: 1ug/m3——999ug/m3

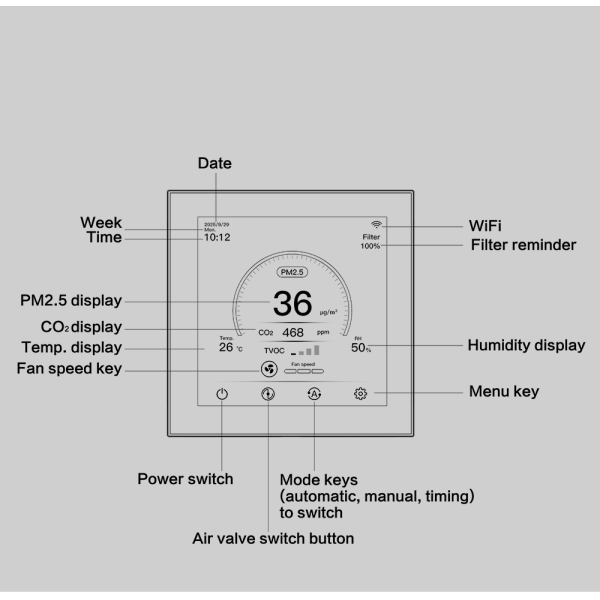

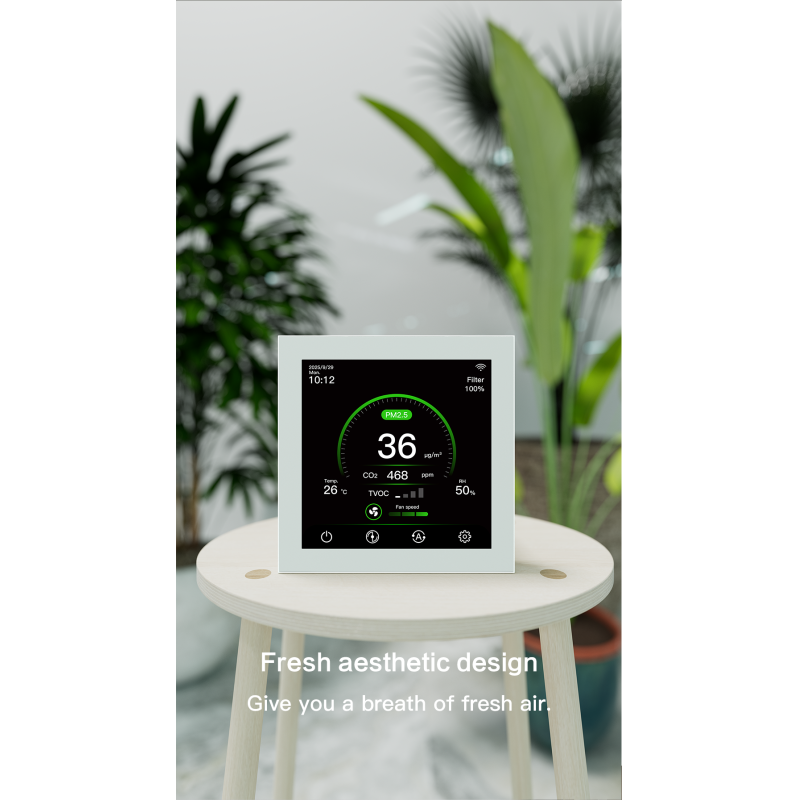

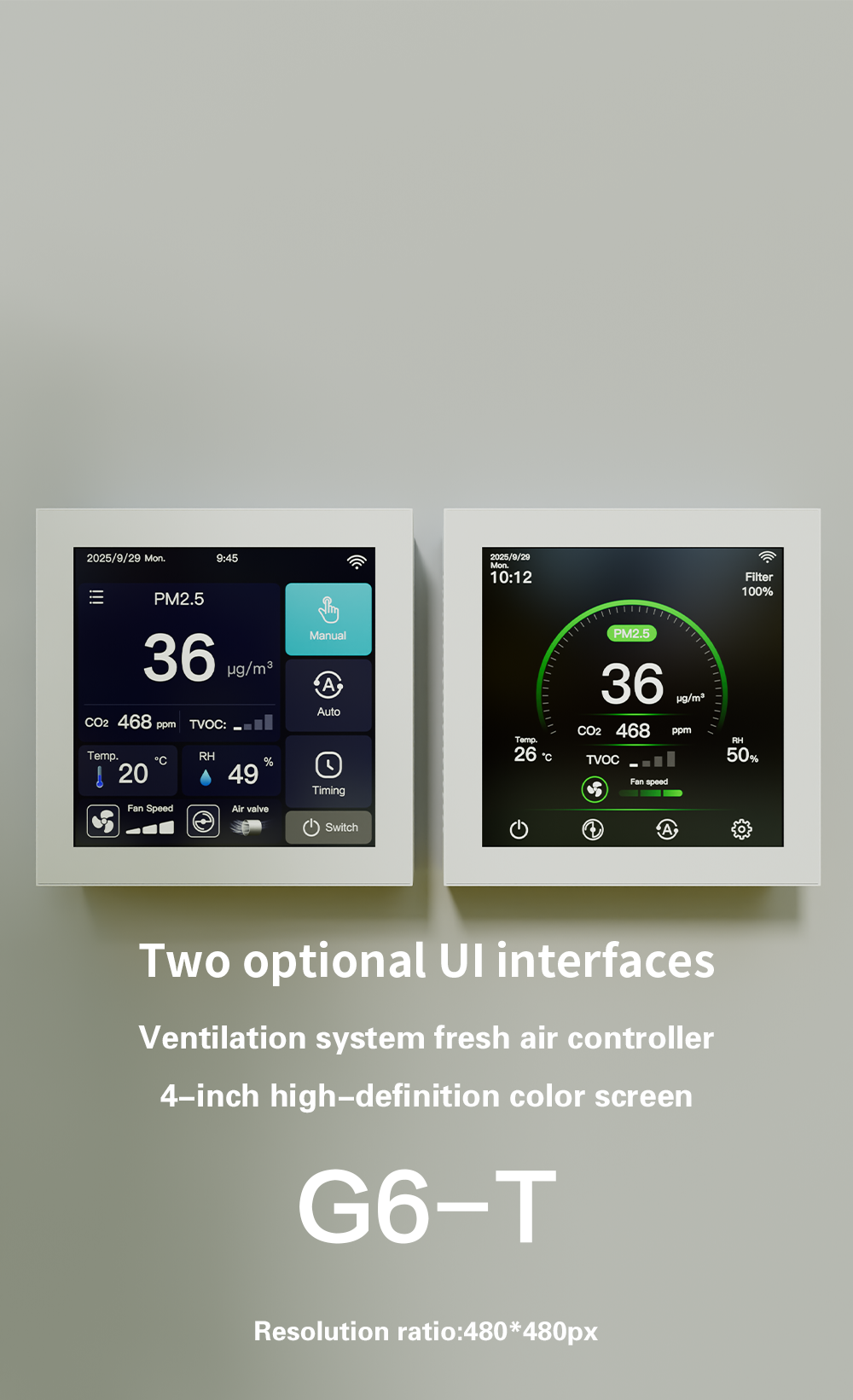

Products images:
4 Inch Smart Ventilation Controller with WiFi Connectivity ModBus RTU Interface for Real Time Fresh Air System Management
4 Inch Smart Ventilation Controller with WiFi Connectivity ModBus RTU Interface for Real Time Fresh Air System Management
4 Inch Smart Ventilation Controller with WiFi Connectivity ModBus RTU Interface for Real Time Fresh Air System Management
4 Inch Smart Ventilation Controller with WiFi Connectivity ModBus RTU Interface for Real Time Fresh Air System Management
