7 Inch LCD Color Screen WiFi HVAC Control Panel For HRV ERV Systems Vent Controller

Product Categories
Shenzhen Xiangfan Electronics Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

7 Inch LCD Color Screen WiFi HVAC Control Panel For HRV ERV Systems Vent Controller

  • 1
  • 2

Brand Name : OEM or neutral (no brand)

Working mode : Manual, Timer, Auto

MOQ : 1

Shell color : White

Delivery Time : 2-3 weeks

Suitable for fans : AC/EC/DC fans

Certification : CE, RoHS

Payment Terms : T/T

Optional built in sensors : VOC+PM2.5+CO2+Temperature+Humidity

Place of Origin : China

Warranty : 1 Year

Price : $103

Supply Ability : 100000pcs

Material : PC and ABS

Model Number : G7 Pro

Contact Now

G7 PRO -- Smart WiFi Fresh Air Ventilation Controller for HRV & ERV Systems with Touchscreen Display
Product Overview

G7 Pro (black UI version) is an intelligent fresh air ventilation controller that integrates multiple sensors including PM2.5, CO2, VOC temperature, and humidity. The device features a 7-inch HD color screen with high-sensitivity touch screen design.

Equipped with Wi-Fi for remote access and control via the internet, it also includes RS485 port and MODBUS protocol for communication with smart home and building automation systems.

The AC version outputs relay signals to directly control AC fan start, stop, and speed regulation, while the DC version outputs separate control voltages for DC fan operation. Suitable for residential, commercial, and industrial applications, it effectively improves air quality and creates healthy, comfortable, efficient, and energy-saving environments.

Key Features
  • Temperature & Humidity Monitoring
  • CO₂, PM2.5, VOC Sensors Data Based Ventilation Control
  • Reduced HVAC Energy Consumption
  • Automatic Energy Optimization
  • WiFi HVAC Control Panel for HRV ERV Systems
  • OEM Smart Ventilation Controller for Fresh Air
Product Specifications
Dimension 115 × 185 mm
Display Interface 7 inch, 1024 x 600
Warm-up Time 2 minutes
Response Time ≤ 10 seconds
Wiring Terminal Max 2.5 mm² wire
Recovery Time ≤ 30 seconds
Rated Voltage AC110-240V, 50/60Hz
Operating Temperature -10℃ to +50℃
Standby Power ≤ 3.0W
Operating Humidity 5％RH to 90％RH
Control Power ≤ 200W
Storage Temperature -10℃ to +60℃
Suitable for Fans AC/EC/DC
PM2.5 Display Range 0μg/m³ to 999μg/m³
Temperature Display Range 0℃ to 99℃
CO2 Display Range 0ppm to 9999ppm
Humidity Display Range 0% to 99%
Fixing Hole Distance 60mm (standard)
Product Images

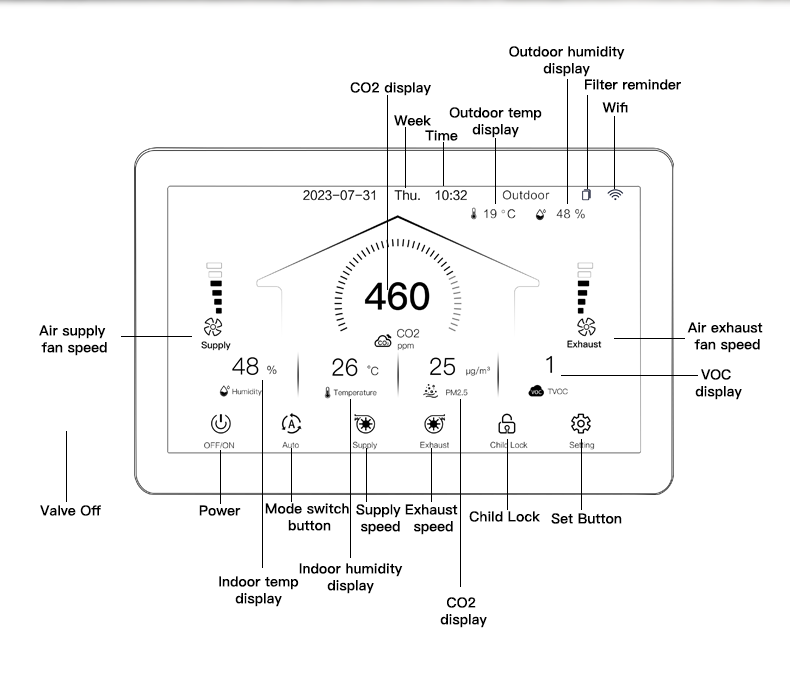

7 Inch LCD Color Screen WiFi HVAC Control Panel For HRV ERV Systems Vent Controller

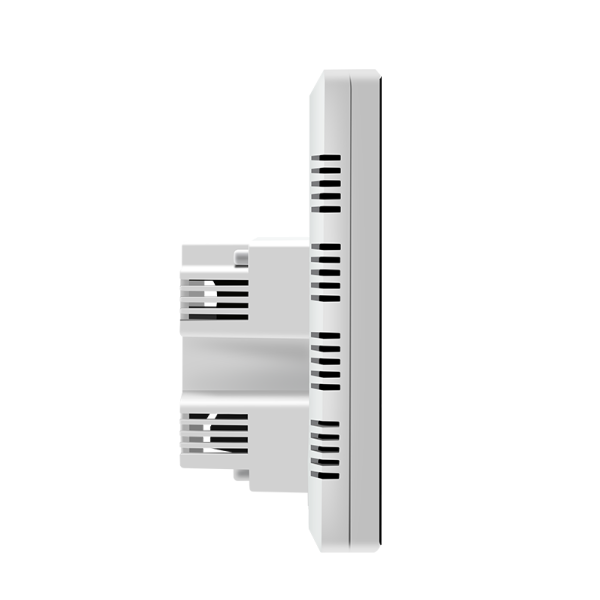

7 Inch LCD Color Screen WiFi HVAC Control Panel For HRV ERV Systems Vent Controller



7 Inch LCD Color Screen WiFi HVAC Control Panel For HRV ERV Systems Vent Controller
